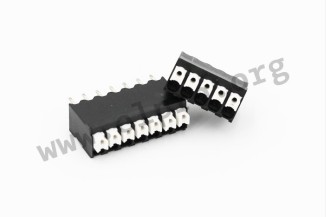

PTR Hartmann spring terminal blocks series AK4601

These spring terminal blocks with a confirmation push button have a vertical wire entry and a vertical screw direction. They have a pitch of 3,5mm and are reflow proof. These terminal blocks are av...

PTR Hartmann spring terminal blocks series AK4601

These spring terminal blocks with a confirmation push button have a vertical wire entry and a vertical screw direction. They have a pitch of 3,5mm and are reflow proof. These terminal blocks are available as a single terminal block (AK4601_VBKHT), a single terminal block with blister strap on wheels (AK4601_VBKHT-G), with shifted pins (AK4601_VP-VBKHT), and with shifted pins and blister strap on wheels (AK4601_VP-VBKHT-G). We offer various types of this PTR Hartmann series.

  • nominal voltage: 250V AC
  • nominal current: 8A
  • over voltage category: III
  • test voltage: 4kV
  • pollution level: 3
  • nominal cross-section: 0,2 to 1,5mm^2 (single and fine stranded)
  • isolation length: 10mm
  • isolation body: PA
  • operating temperature: -40 to +105°C
  • inflammability class: UL94V-0
  • colour: black
