Recom power supply series RACM550-G/ENC

Open frame switching power supplies in a compact case (5"x3") with 550W and a universal input. These devices have a fanless design (300W baseplate-cooled) and are protected against short circuit, overload (a...

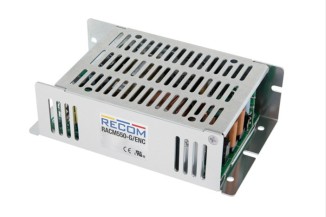

Recom power supply series RACM550-G/ENC

Open frame switching power supplies in a compact case (5"x3") with 550W and a universal input. These devices have a fanless design (300W baseplate-cooled) and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for medical applications (2xMOPP, 250V AC working voltage insulation) and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: RACM550-24SG/ENC, RACM550-36SG/ENC, RACM550-48SG/ENC and RACM550-56SG/ENC.

  • single output
  • output: 550W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal output voltage tolerance: ±3%
  • maximal input inrush current: 60A
  • maximal leakage current: 0,25mA
  • overload protection: 105 to 150%
  • maximal ripple and noise: 120mVpp
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +70°C
  • dimensions: 150x87x45mm
  • weight: 590g
