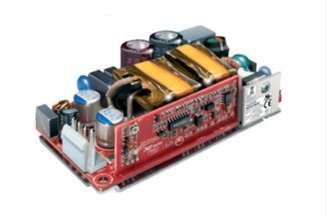

Recom AC/DC converters series RAC150-G

These converter modules in a compact frame (4"x2") are equipped with a universal input and contact pins for nylon-crimp terminals. They have a cooling via free air convection up to125W, are protected against ...

Recom AC/DC converters series RAC150-G

These converter modules in a compact frame (4"x2") are equipped with a universal input and contact pins for nylon-crimp terminals. They have a cooling via free air convection up to125W, are protected against overload (hiccup, auto recovery), over voltage, and short circuit. These devices have a build in PFC circuit, as well as they conform with EN62368-1, EN61000-3-2, EN1000-3-3, and others. We offer the RAC150-24SG/OF type of this Recom series.

  • single output
  • output current: 150W
  • input voltage range: 90 to 264V AC (47 to 63Hz)
  • output voltage tolerance: ±2%
  • inrush current, max.: 60A
  • leakage current, max.: 0,25mA
  • overload protection: 105 to 150%
  • isolation voltage I/P-O/P: 3000V AC
  • isolation voltage I/P-FG: 1500V AC
  • isolation voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 101,6x50,8x30,0mmm
  • weight: 200g
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Recom
    RAC150-24SG/OF, Recom AC/DC converters, 150W, open frame, RAC150-G series
    64,99 €
    247221 RAC150-24SG/OF RAC150-24SG/OF
    64,99 €

    More
    Stock: 0
Showing 1 - 1 of 1 product
