Recom AC/DC converters series RAC150-G

These converter modules in a compact housing (4"x2") are equipped with a universal input and contact pins for nylon-crimp terminals. They have a cooling via free air convection up to125W, are protected agains...

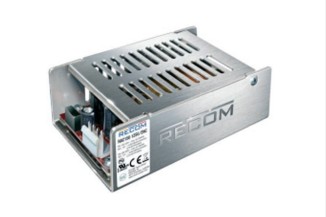

Recom AC/DC converters series RAC150-G

These converter modules in a compact housing (4"x2") are equipped with a universal input and contact pins for nylon-crimp terminals. They have a cooling via free air convection up to125W, are protected against overload (hiccup, auto recovery), over voltage, and short circuit. These devices have a build in PFC circuit, as well as they conform with EN62368-1, EN61000-3-2, EN1000-3-3, and others. We offer the following types of this Recom series: RAC150-12SG/ENC and RAC150-24SG/ENC.

  • single output
  • output current: 150W
  • input voltage range: 90 to 264V AC (47 to 63Hz)
  • output voltage tolerance: ±2%
  • inrush current, max.: 60A
  • leakage current, max.: 0,25mA
  • overload protection: 105 to 150%
  • isolation voltage I/P-O/P: 3000V AC
  • isolation voltage I/P-FG: 1500V AC
  • isolation voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 105,0x62,0x35,0mmm
  • weight: 265g
