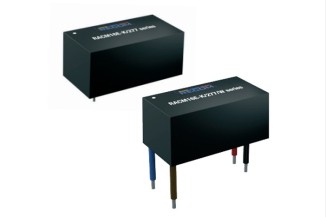

Recom AC/DC converters series RACM16E-K/277/W

AC/DC converters with a power output of 16W, with a low off-load power, and compatible with DC. These devices have a universal input, a closed frame, as well as they are protected against overload, ove...

Recom AC/DC converters series RACM16E-K/277/W

AC/DC converters with a power output of 16W, with a low off-load power, and compatible with DC. These devices have a universal input, a closed frame, as well as they are protected against overload, overtemperature, and short circuit. They are suitable for medical technological application (2xMOPP), ITE, industry, as well as for the use in the normal household. Furthermore they comply with ANSI/AAMI ES 60601-1, EN 62368-1, EN 60335-1, EN 61558-1, EN 61558-2-16, EN 60601-1, EN55032 class B, EN 61204-3, and EN 60601-1-2. We offer the following types of this Recom series: RACM16E-05SK/277/W, RACM16E-12SK/277/W und RACM16E-24SK/277/W.

  • single output
  • output: 16W
  • input voltage: 85 to 305VAC (47 to 63Hz), 120 to 430V DC
  • operating temperature: -40 to +65 °C
  • isolation voltage (I/P-O/P): 4200V
  • contact termination: stranded wire
  • dimension: 52,7x27,6x23mm
  • weight: 60g
