Recom AC/DC converters series RAC02-SE/277/W

AC/DC converters in a plastic case, with 2W, and protected against overload, over voltage as well as short circuit. They conform with the safety norms EN60950-1, EN60335-1, and with the EMV norms EN5503...

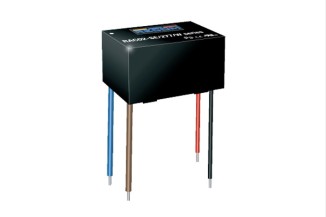

Recom AC/DC converters series RAC02-SE/277/W

AC/DC converters in a plastic case, with 2W, and protected against overload, over voltage as well as short circuit. They conform with the safety norms EN60950-1, EN60335-1, and with the EMV norms EN55032 class B. We offer the following types of this Recom series: RAC02-05SE/277/W and RAC02-24SE/277/W.

  • single output
  • current: 2W
  • input voltage: 85 to 246V AC (47 to 63Hz)
  • output voltage tolerance: ±6,0%
  • ripple quality: 250mVpp
  • isolation voltage I/P-O/P: 3000V AC/ 1 min.
  • operating temperature: -40 to +75°C
  • dimensions: 33,7x22,2x17,75mm
  • weight: 25g
> More
Data Sheet
