Recom Switching power supplies series RACM100

These power units in enclosed case are endued with crimp terminals, contact pin for nylon-crimp terminals, universal input and single output. They also have a built-in active PFC function as well as a ...

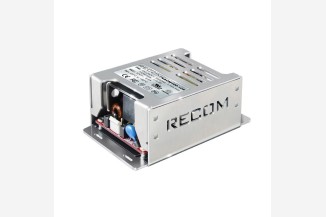

Recom Switching power supplies series RACM100

These power units in enclosed case are endued with crimp terminals, contact pin for nylon-crimp terminals, universal input and single output. They also have a built-in active PFC function as well as a low no load power consumption and are protected against overload by pulsing hiccup shutdown (auto recovery) short circuit and overvoltage. Futhermore the devices conform EN60601-1 (2x MOPP Level). We are offering the following types by manufacturer Recom: RACM100-12S, RACM100-15S, RACM100-24S and RACM100-48S

• outoput: 100 Watt
• input  voltage: 85 to 264V AC (47 to 63Hz) 120 to 370V DC
• input inrush current, max.:  60A
• leakage current, max.: <75µA
• no load power consumption, max.: 0.3W
• output voltage adjustment: ±10%
• overload protection: 115 to 150%
• withstand voltage I/P-O/P: 4000V AC
• withstand voltage I/P-FG: 1500V AC
• withstand voltage O/P-FG: 1500V AC
• operating temperature: -25 to +85°C
• operating altitude, max.: 5000m
• weight: 210g

> More
Data Sheet
