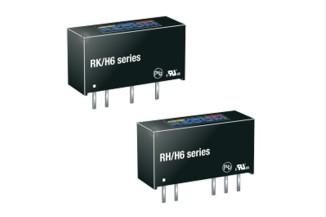

Recom DC/DC converters series RH, RK, RK/H6

These DC/DC converter modules in a SIP7 housing are suitable for PCB mounting and the type RK-_/P has a continual short circuit protection. They conform with the EVM norms EN55032 class A and B, as well ...

Recom DC/DC converters series RH, RK, RK/H6

These DC/DC converter modules in a SIP7 housing are suitable for PCB mounting and the type RK-_/P has a continual short circuit protection. They conform with the EVM norms EN55032 class A and B, as well as with the safety norms UL 60950-1, EN 60950-1, UL 62368-1, and EN 62368-1. We offer the following types of this Recom series: RH-1215D/H6, RK-0505S/H6, RK-053.3S/H6, RK-1205S/H6, RK-1215S, and RK-2405S/H6.

  • single and dual output
  • output current: 1W
  • maximal output tolerance: ±5%
  • maximal ripple quality: 100mVp-p
  • isolation voltage I/P-O/P: 3000V DC/1s (Rx-_), 6400V DC/1s (Rx-_/H6)
  • operating temperature: -40 to +90°C
  • dimensions: 19,65x7,05x10,2mm
  • weight: 2,7g
> More
Data Sheet
