Recom AC/DC converters series RAC03-K/SMT

AC/DC converters in a plastic housing (closed), they are protected against short circuit, overload, and over voltage. Theses Devices are suitable for use in industry, ITE and the normal household, but they...

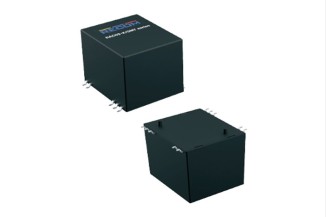

Recom AC/DC converters series RAC03-K/SMT

AC/DC converters in a plastic housing (closed), they are protected against short circuit, overload, and over voltage. Theses Devices are suitable for use in industry, ITE and the normal household, but they should not be used as external components for floating loads. They conform the safety class II, the safety norms EN 62368-1; UL 62368-1; EN 60335-1; EN 61558-1; and EN 61558-2-16, as well as with the EMV norms EN 55032 class B and EN 61204-3. We offer the following types of this Recom series: RAC03-3.3SK/SMT-R, RAC03-05SK/SMT-R, RAC03-12SK/SMT-R, RAC03-15SK/SMT-R, and RAC03-24SK/SMT-R.

  • single output
  • power: 3W
  • input voltage: 85 to 265V AC (47 to 63Hz), 120 to 370V DC
  • input current: 0,04A
  • maximal input inrush current: 20A
  • isolation voltage (I/P-O/P): 4000V AC
  • operating temperature: -40 to +80°C
  • dimensions: 27,7x23,7x19mm
  • weight: 15,5g
> More
Data Sheet
