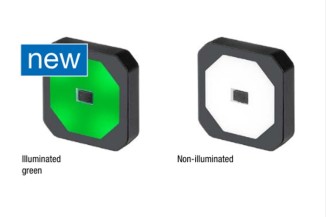

Schurter touchless push button switches series THS

These touchless push buttons (1x NC) have an optical confirmation as well as a RGB Area illumination and a TOF sensortechnology. They have a glue attachment with a stranded wire connection and a s...

Schurter touchless push button switches series THS

These touchless push buttons (1x NC) have an optical confirmation as well as a RGB Area illumination and a TOF sensortechnology. They have a glue attachment with a stranded wire connection and a standard sensitivity for glass thickness of up to 2mm, furthermore they are protectet against voltage reversal and short circuit. We offer the 3-140-093 type of this Schuter series.

  • contact: 1x normally closed contact
  • maximal switching voltage: 42V AC, 60V DC
  • maximal switching current:0,1A
  • switching resistor, open: > 10 MΩ
  • switching resistor, closed: < 16Ω
  • lifespan / cycles: > 100 million confirmations
  • operating temperature: -40 to +85°C
  • dimensions: 30x30x7,7mm
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Schurter
    3-140-093, Schurter push button switches, touchless, 1x normally closed contact, THS series
    46,69 €
    246725 3-140-093 3-140-093
    46,69 €
