Camtec switching power supplies series CPS-i1500(R2)

These switching power supplies have a metal housing, their output voltage and current is programmable, as well as they have a remote function and a remote sense. These devices are suitable for D...

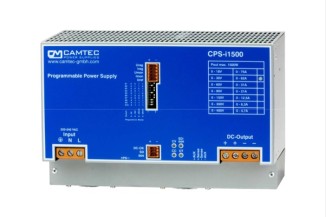

Camtec switching power supplies series CPS-i1500(R2)

These switching power supplies have a metal housing, their output voltage and current is programmable, as well as they have a remote function and a remote sense. These devices are suitable for DC-OK signals and furthermore they are protectet against short circuit, overload, overtemperature, and overvoltage. We offer the following types of this camtec series: CPS-i1500.018(R2), CPS-i1500.030(R2), and CPS-i1500.060(R2).

  • safety norms: EN 61010-1; EN 62368-1; EN 60950-1; EN 60204-1
  • EMV norms: EN 55032 class B; EN 55032 class A
  • protection class I
  • protection type: IP20
  • input voltage: 184 to 264V AC (47 to 63Hz)
  • input current: 13,5A
  • maximal starting current: 20,7A
  • output voltage tolerance: ±0,05%
  • connection type: screw terminal
  • operating temperature: -25 to +70°C
  • isolation voltage: 3000V (I/P-O/P), 2500V (I/P-FG), 500V (O/P-FG)
  • dimensions: 250x161x120mm
  • weight: 4100g
> More
Data Sheet
