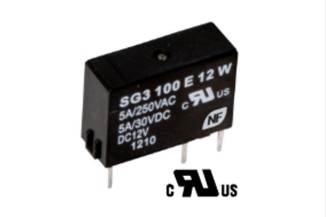

NF PCB relays series SG3

These slim miniature PCB relays (6,5mm), are UL/CUL approved.  They have a special design for interface and home application. We offer the following types of this NF series: SG3100E5W, SG3100E12W, and SG3100E24W.

  • contact t...

NF PCB relays series SG3

These slim miniature PCB relays (6,5mm), are UL/CUL approved.  They have a special design for interface and home application. We offer the following types of this NF series: SG3100E5W, SG3100E12W, and SG3100E24W.

  • contact type: 1x normally open contact
  • contact material: AgSnO
  • maximal switching current: 5A
  • maximal switching voltage: 30V DC / 250V AC
  • maximal switching power: 150W / 1250VA
  • contact resistance: 100mOhm
  • operate / drop out time: 10/5ms
  • test voltage: 3000V (inductor / contact), 750V (open contact)
  • endurance: 20x106 (mechanical)
  • operating temperature: -25 to +70°C
  • weight: 3g
  • dimensions: 17,5x6,5x12,5mm
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • NF Forward
    SG3100E5W, NF PCB relays, 5A, contact: 1x normally open contact, SG3 series
    0,845 €
    247704 SG3100E5W SG3100E5W
    0,845 €

    More
    Stock: 0
  • NF Forward
    SG3100E12W, NF PCB relays, 5A, contact: 1x normally open contact, SG3 series
    0,878 €
    246892 SG3100E12W SG3100E12W
    0,878 €

    More
    Stock: 200
  • NF Forward
    SG3100E24W, NF PCB relays, 5A, contact: 1x normally open contact, SG3 series
    0,905 €
    246893 SG3100E24W SG3100E24W
    0,905 €

    More
    Stock: 200
Showing 1 - 3 of 3 products
