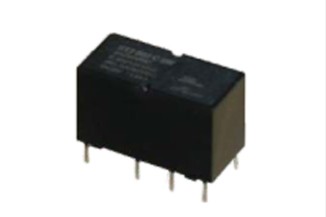

NF PCB relays series ST2

These standard PCB DIL relays have, a 2 form C contact (2x normally open contact), a switching current of 2A, as well as they belonge to the environmental protection class RTII. They are sealed and can be applied in the fo...

NF PCB relays series ST2

These standard PCB DIL relays have, a 2 form C contact (2x normally open contact), a switching current of 2A, as well as they belonge to the environmental protection class RTII. They are sealed and can be applied in the following areas: security devices, arlarm, office equipment, signal intercommunication systems, meassurements, and controls. We offer the following types of this NF series: ST2002C12W and ST2002C24W.

  • contact type: 2x normally open contact
  • contact material: AgNi, Au coated
  • maximal switching current: 2A
  • maximal switching voltage: 250V AC / 220V DC
  • switching power: 125VA / 60W
  • operate / drop out time: 5/3ms
  • test voltage: 1000VRMS (inductor / contact), 1000VRMS (open contact)
  • endurance: 108 (mechanical), 105 (electrical)
  • operating temperature: -40 to +90°C
  • weight: 4,5g
  • dimensions: 20x9,8x12mm
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • NF Forward
    ST2002C12W, NF PCB relays, 2A, contact: 2x normally open contact, ST2 series
    0,756 €
    246890 ST2002C12W ST2002C12W
    0,756 €

    More
    Stock: 500
  • NF Forward
    ST2002C24W, NF PCB relays, 2A, contact: 2x normally open contact, ST2 series
    0,797 €
    246891 ST2002C24W ST2002C24W
    0,797 €

    More
    Stock: 390
Showing 1 - 2 of 2 products
