NF motor vehicle relays series NF105

These relays have small demensions but they still are suitable for heavy contact load (80A). They have a ISO based terminallayout, they are available in a type for PC board mounting (NF105-100E12SP) and in a pl...

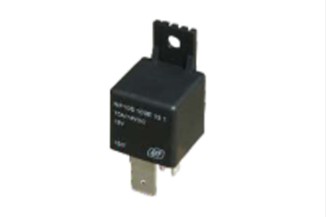

NF motor vehicle relays series NF105

These relays have small demensions but they still are suitable for heavy contact load (80A). They have a ISO based terminallayout, they are available in a type for PC board mounting (NF105-100E12SP) and in a plug in type (NF105-100E121). We offer the following types of this Nf series: NF105-100E121 and NF105-100E12SP.

  • maximal switching current: 80A
  • switching power: 1120W
  • maximal switching voltage: 75V DC
  • contact type: 1x normally open contact
  • contact material: Ag alloy
  • contact resistance: 30mOhm
  • isolation resistance: 100MOhm
  • operate / drop out time: 10/5ms
  • test voltage: 1000V (inductor / contact), 500V (contact / contact)
  • endurance: 1x107 (mechanical), 1x105 (electrical)
  • operating temperature: -40 to +125°C
  • weight: 48g (NF105-100E121), 46g (NF105-100E12SP)
  • dimensions: 29x29x26,5mm
