NF motor vehicle relays series NF104

These sealed relays have small demensions but they still are suitable for heavy contact load (40A). They are available in a type for PC board mounting (NF104-100E12SP) and in a type for direct insert mounting (...

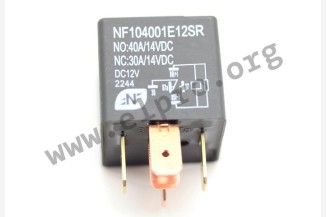

NF motor vehicle relays series NF104

These sealed relays have small demensions but they still are suitable for heavy contact load (40A). They are available in a type for PC board mounting (NF104-100E12SP) and in a type for direct insert mounting (NF104-000E12SP). We offer the following types of this Nf series: NF104-001E12SR and NF104-100E12SP.

  • maximal switching current: 40A
  • switching power: 630W
  • maximal switching voltage: 75V DC
  • contact type: 1x changeover (NF104-001_), 1x normally open contact (NF104-100_)
  • contact material: AgSnO
  • contact resistance: 30mOhm
  • isolation resistance: 100MOhm
  • operate / drop out time: 7/5ms
  • test voltage: 500V (inductor / contact), 500V (contact / contact)
  • endurance: 107 (mechanical), 105 (electrical)
  • vibration resistance: 1,5mm DA
  • operating temperature: -40 to +125°C
  • weight: 31g
  • dimensions: 26,5x26,5x24,5mm
