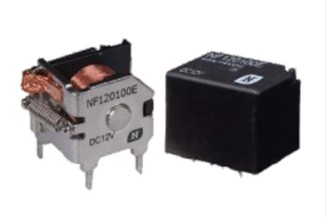

NF PCB relay series NF120

These sealed relays are  suitable for PC board mounting. Despite their small size they can resist a high current of up to 40A at  14V DC. We offer the following types of this NF series: NF120-001E12S and NF120-001E24S.
  • ma...

NF PCB relay series NF120

These sealed relays are  suitable for PC board mounting. Despite their small size they can resist a high current of up to 40A at  14V DC. We offer the following types of this NF series: NF120-001E12S and NF120-001E24S.
  • maximal switching current: 40A
  • maximal switching voltage: 75V DC / 380V AC
  • maximal switching power: 630W / 2400VA
  • contact type: 1x changeover
  • contact material: AgSnO
  • contact resistance: 30mOhm
  • operate / drop out time: 5/3ms
  • test voltage: 750V (inductor / contact), 500V (contact / contact)
  • endurance: 107 (mechanical), 105 (electrical)
  • operating temperature: -40 to +125°C
  • weight: 21g
  • dimensions: 26,8x21,5x22,3mm
