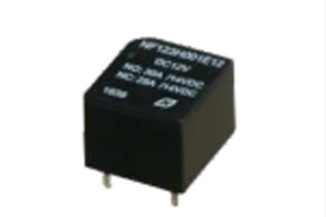

NF PCB relay series NF123H

These relays have a high temperature resistance (up to 105°C and they ar suitable for automobile and lamp accessories application. Despite their small size and low weight they have a heavy contact load switching current ...

NF PCB relay series NF123H

These relays have a high temperature resistance (up to 105°C and they ar suitable for automobile and lamp accessories application. Despite their small size and low weight they have a heavy contact load switching current of up to 30A. We offer the following types of this NF series: NF123H-001E12S and NF123H-001E24S.
  • maximal switching current: 30A
  • maximal switching voltage: 24V DC
  • maximal switching power: 420W
  • contact type: 1x changeover
  • contact material: AgSnO
  • contact resistance: 1000mOhm
  • operate / drop out time: 4 / 1,5ms
  • test voltage: 500V (inductor / contact), 500V (contact / contact)
  • endurance: 107 (mechanical), 105 (electrical)
  • operating temperature: -40 to +105°C
  • weight: 4g
  • dimensions: 12x13x9,9mm
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • NF Forward
    NF123H-001E12S, NF PCB relays, 30A, 1x changeover contact , NF123H series
    0,797 €
    246914 NF123H-001E12S NF123H-001E12S
    0,797 €

    More
    Stock: 500
  • NF Forward
    NF123H-001E24S, NF PCB relays, 30A, 1x changeover contact , NF123H series
    0,851 €
    246915 NF123H-001E24S NF123H-001E24S
    0,851 €

    More
    Stock: 500
Showing 1 - 2 of 2 products
