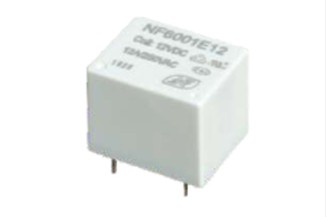

NF PCB relay series NF6

These sugar cube relays have a universal terminal footprint, they have a UL isolationsystem of the class F, as well as they conform with the environmental prottection RTII. These relays are available in the standard type (N...

NF PCB relay series NF6

These sugar cube relays have a universal terminal footprint, they have a UL isolationsystem of the class F, as well as they conform with the environmental prottection RTII. These relays are available in the standard type (NF6) or in the "high-temperature" type (NF6T), they belong to the material group of insulation parts IIIa, and fit into the over voltage category II. We offer the following types of this NF series: NF6-001E12, NF6-001E24, NF6T-100E12, and NF6T-100E24.

  • maximal switching current: 12A
  • maximal switching voltage: 110V DC / 400V AC
  • contact type: 1x changeover (NF6-001_), 1x normally open contact (NF6T-100_)
  • contact material: Ag alloy
  • contact resistance: 100mOhm
  • air / creepage distance: 1,8 / 1,5mm
  • operate / drop out time: 10 / 5ms
  • test voltage: 750V (inductor / contact), 1000V (open contact)
  • endurance: 107 (mechanical), 105 (electrical)
  • vibration resistance: 1,5mm DA
  • operating temperature: -40 to +105°C
  • weight: 9,4g
  • dimensions: 19,5x15,6x15,3mm
> More
Data Sheet
