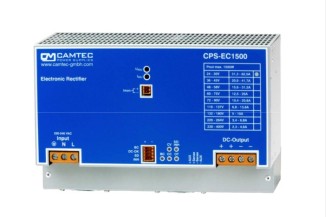

Camtec rectifier battery charger series CPS-EC1500(R2)

Battery chargers with 1500W, an ajustable output voltage, a remote controle,  a remote sense, and an DC-OK signal. These devices are protected against overload, over voltage, overtemperature a...

Camtec rectifier battery charger series CPS-EC1500(R2)

Battery chargers with 1500W, an ajustable output voltage, a remote controle,  a remote sense, and an DC-OK signal. These devices are protected against overload, over voltage, overtemperature and short circuit, as well as they comply with EN 61010-1, EN 62368-1, EN 60950-1, EN 60204-1, EN 55032 class A and class B. We offer the following types of this Camtec series: CPS-EC1500.024, CPS-EC1500.036, CPS-EC1500.048, CPS-EC1500.060, CPS-EC1500.072, CPS-EC1500.110, CPS-EC1500.150, CPS-EC1500.220, and CPS-EC1500.400.

  • output current: 1500W
  • input voltage: 184 to 264V AC, (47...63Hz), 250 to 375V DC
  • inputcurrent: 13,5A
  • maximum starting current: 20,7A
  • isolation voltage I/P-O/P: 3000V AC
  • isolation voltage I/P-FG: 2500V AC
  • isolation voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • dimensions: 250x161x119,5mm
  • weight: 4100g
> More
Data Sheet
