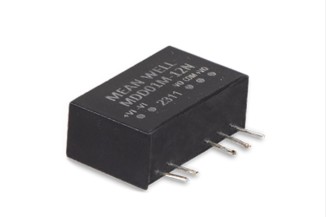

Mean Well DC/DC converter series MDD01-N

Unregulated DC/DC converters in a SIP7 housing with 2W, a high I/O isolation (6KVDC) and a low patient leakage current (<2µA). These devices are low in cost, suitable for medical technology applications ...

Mean Well DC/DC converter series MDD01-N

Unregulated DC/DC converters in a SIP7 housing with 2W, a high I/O isolation (6KVDC) and a low patient leakage current (<2µA). These devices are low in cost, suitable for medical technology applications (1xMOPP/2xMOOP), and are protected against short circuit. We offer the following types of this Mean Well series: MDD01L-05N, MDD01L-12N, MDD01L-15N, MDD01M-05N, MDD01M-12N, MDD01M-15N, MDD01N-05N, MDD01N-12N, and MDD01N-15N.

  • dual output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 6000V DC
  • operating temperature: -40 to +95°C
  • weight: 2,8g
  • dimensions: 19,7x7,1x11,5mm
> More
Data Sheet
