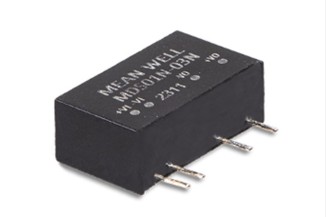

Mean Well DC/DC converter series MDS01-N

Unregulated DC/DC converters in a SIP/SIL7 housing with 1W and a low patient leakage current (<2µA). These low-cost devices are according to IEC60601-1 suitable for medical technology applications (1xMOP...

Mean Well DC/DC converter series MDS01-N

Unregulated DC/DC converters in a SIP/SIL7 housing with 1W and a low patient leakage current (<2µA). These low-cost devices are according to IEC60601-1 suitable for medical technology applications (1xMOPP/2xMOPP) and are protected against short circuit. They havea high E/A isolation (6KVDC) and are suitable for direct PCB mounting. We offer the following types of this Mean Well series: MDS01L-03N, MDS01L-05N, MDS01L-12N, MDS01L-15N, MDS01-03N, MDS01M-05N, MDS01M-12N, MDS01M-15N, MDS01-03N, MDS01N-05N, MDS01N-12N, and MDS01N-15N.

  • single output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 6000V DC
  • operating temperature: -40 to +95°C
  • weight: 2,8g
  • dimensions: 19,7x7,1x11,5mm
> More
Data Sheet
