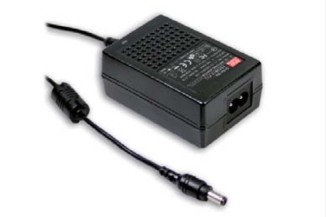

Mean Well desktop power supply series GSM18B

External switching power supplies in a plastic housing (UL94V-0) with 18W, protection class II, a low no-load power (<0,1W) and energy efficiency Level VI. These devices are suitable for medical tech...

Mean Well desktop power supply series GSM18B

External switching power supplies in a plastic housing (UL94V-0) with 18W, protection class II, a low no-load power (<0,1W) and energy efficiency Level VI. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overvoltage as well as short circuit. They have an LED indicator for power on, a 2-pole AC inlet (IEC320-C8) and comply with EN62368-1, EN60601-1, EN60601-11 as well as EN55011 class B. We offer the following types of this Mean Well series: GSM18B05-P1J, GSM18B07-P1J, GSM18B09-P1J, GSM18B12-P1J, GSM18B15-P1J, GSM18B18-P1J, GSM18B24-P1J, and GSM18B48-P1J.

  • single output
  • output: 18W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 55A
  • leakage current: <50µA
  • overload protection: 105 to 170%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -25 to +60°C
  • dimensions: 79x54x33mm
  • weight: 205g
> More
Data Sheet
