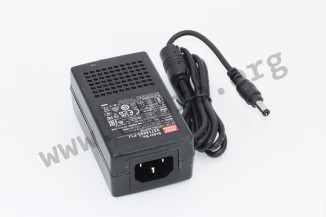

Mean Well desktop power supply series GST18A

External switching power supplies in a plastic housing (UL94V-0) with 18W, a universal input, a 3 pole AC inlet in compliance with IEC320-C14, protection class I and a low no-load power (<0,075W). Th...

Mean Well desktop power supply series GST18A

External switching power supplies in a plastic housing (UL94V-0) with 18W, a universal input, a 3 pole AC inlet in compliance with IEC320-C14, protection class I and a low no-load power (<0,075W). These devices have an LPS certification and are protected against overload, overvoltage as well as short circuit. They have an LED indicator for power on and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GST18A05-P1J, GST18A07-P1J, GST18A09-P1J, GST18A12-P1J, GST18A15-P1J, GST18A18-P1J, GST18A24-P1J, GST18A28-P1J and GST18A48-P1J.

  • single output
  • output: 15 to 18W
  • input voltage: 85 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 65A
  • leakage current: <0,75mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 4242V DC
  • withstand voltage I/P-FG: 2121V DC
  • operating temperature: -30 to +70°C
  • dimensions: 93x54x36mm
  • weight: 209g
> More
Data Sheet
