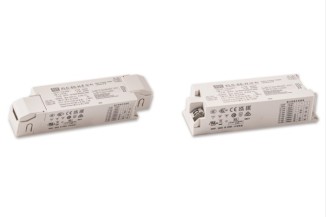

Mean Well LED driver series XLC-60

LED drivers in a plastic housing with 60W, a DALI-2 interface, an NFC function (XLC-60_N), a dimming function, a strain relief (XLC-60-H-S_) and an adjustable output current. These devices have a built-in active PFC function and are protected against overtemperature as well as short circuit. They are suitable for LED lighting applications, have a low no-load power (<0,5W) and comply with IEC62386-101/102/207, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLC-60-H-DA2, XLC-60-H-DA2N, XLC-60-H-DA2S and XLC-60-H-DA2SN.

single output
output: 60W
input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC
maximal input inrush current: 15A
leakage current: <0,75mA
withstand voltage I/P-O/P: 3750V AC
operating temperature: -25 to +90°C

> More

Data Sheet
