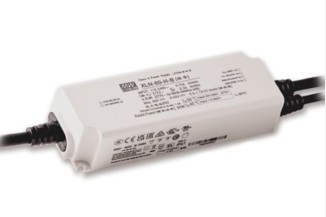

Mean Well LED driver series XLN-60

LED drivers in a plastic housing (IP67) with 60W, a 3 in 1 dimming function, a constant voltage and a low no-load power (<0,5W). These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLN-60-12-B, XLN-60-24-B and XLN-60-48-B.

single output
output: 60W
input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC
maximal input inrush current: 15A
leakage current: <0,75mA
withstand voltage I/P-O/P: 3750V AC
operating temperature: -25 to +90°C
dimensions: 141,5x49x32mm
