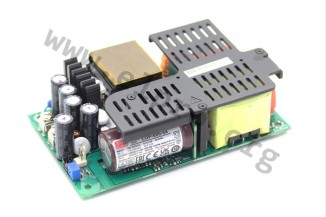

Mean Well power supply series LOP-600

Open frame switching power supplies with 600W (forced air), a low no-load power, protection class I/II, an adjustable output voltage and an auxiliary output power (12V/0,5A). These devices are suitable for medical technology applications (2xMOPP), have a peak power capability of 150% and are protected against overvoltage, overload, overtemperature as well as short circuit. They have a built-in active PFC function and comply with EN60601-1, EN62368-1, EN61558-1, EN61558-2-16, EN55032 class A/B as well as EN5014. We offer the following types of this Mean Well series: LOP-600-12, LOP-600-15, LOP-600-18, LOP-600-24, LOP-600-27, LOP-600-36, LOP-600-48 and LOP-600-54.

single output
output: 599,4 to 604,8W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 80A
no-load power: <0,5W
withstand voltage I/P-O/P: 4000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +80°C
dimensions: 127x76,2x33,5mm
weight: 480g
