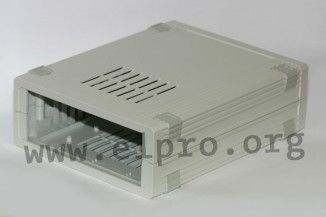

ABS desktop enclosures

• the enclosure is composed of two half shells
optional:
• front and back panel (FP_)
• assembly set in two depths (AB_L)
• four fixed feet (UM-AS)
• two fixed and two folding feet (UM-ASK)

half shell enclosures
• ABS half shell enclosures with molded, covered louvers in the upper and lower part
• surface with eroding structure in light grey (similar to RAL 7035)
• due to the symmetry of the half shells, connection possible using four M3 screws in the upper or lower part.
• the screw holes can be covered with eight provided cover caps.
• cams for cutting screws are available in the enclosure shell halves.
• the cam mass is especially co-ordinated to meet European card format.
• the nuts in the side panels of the shell half slots are attached at a distance of 10mm, in order to be able to push in panels vertically.

UM 32009 L - 2 half shells UM3, louvred
UM 32609 L - 2 half shells UM3, deep, louvred
UM 52011 L - 2 half shells UM5, louvred
UM 62009 L - 2 half shells UM6, louvred
UM 62609 L - 2 half shells UM6, deep, louvred

FP 30009 - 1 front panel for UM3, without extension set
FP 30018 - 1 front panel for UM3, with 1 extension set
FP 50011 - 1 front panel for UM5, without extension set
FP 50020 - 1 front panel for UM5, with 1 extension set
FP 60009 - 1 front panel for UM6, without extension set
FP 60018 - 1 front panel for UM6, with 1 extension set
FP 60027 - 1 front panel for UM6, with 2 extension sets

front and back panel FP_
• made of anodized aluminium, insertable
• 2mm thick
• 11 front panels available in different variations

extension set AB_L
• the enclosure height can be extended by a maximum of three extension sets, each 45,72mm (1.8")
• material ABS, color light grey (similar to RAL 7035)
• the assembly parts are connected with M3 screws underneath each other

set-up foot set UM-AS
• set-up foot set consisting of four fixed feet in agate grey
• enclosure has more ground room (12mm) which particularly improves the air circulation of either horizontally or vertically stacked enclosures
• the feet can alternatively be used for horizontal or vertical placed enclosures

set-up foot set UM-ASK
• set-up foot set consisting of two fixed feet and two folding feet in agate grey
• enclosure is diagonally set-up to facilitate e.g. reading displays
• the feet can alternatively be used for horizontal or vertical placed enclosures
