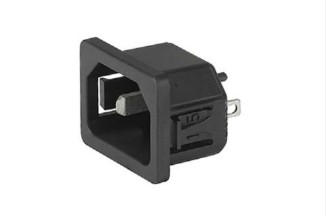

Schurter IEC connector series 6102-5

IEC appliance inlets C18 with a pin temperature of up to +70°C. These devices are suitable for snap-in mounting and have solder resp. quick connect terminals. They are suitable for protection class II devices a...

Schurter IEC connector series 6102-5

IEC appliance inlets C18 with a pin temperature of up to +70°C. These devices are suitable for snap-in mounting and have solder resp. quick connect terminals. They are suitable for protection class II devices and are IP30 rated. We offer the following types of this Schurter series: 6102.5110, 6102.5112, 6102.5115, 6102.5120.051, 6102.5125, 6102.5130, 6102.5215, 6102.5220, 6102.5225, 6102.5230, 6102.5310, 6102.5312, 6102.5315, 6102.5320, 6102.5325, 6102.5330, and 3-145-176.

  • rated voltage: 250V AC
  • rated current: 10A
  • dielectric strength: >2kV AC
  • operating temperature: -25 to +70°C
> More
Data Sheet
