Mean Well LED driver series XBG-100

LED drivers in a circular metal housing (IP67) with 100W, a constant power and a potentiometer fod adjusting the output power. These devices have a built-in active PFc function and are protected against overload...

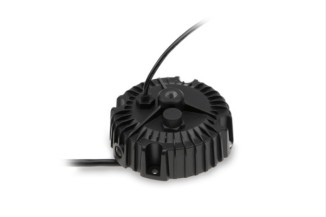

Mean Well LED driver series XBG-100

LED drivers in a circular metal housing (IP67) with 100W, a constant power and a potentiometer fod adjusting the output power. These devices have a built-in active PFc function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: XBG-100-A and XBG-100-A-C.

  • single output
  • output: 100W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • leakage current: <0,75mA
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø130x56mm
  • weight: 800g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    XBG-100-A, Mean Well LED drivers, 100W, IP67, constant power, adjustable, circular housing, XBG-100 series
    29,59 €
    244854 XBG-100-A XBG-100-A
    29,59 €

    More
    Stock: 0
  • Mean Well
    XBG-100-A-C, Mean Well LED drivers, 100W, IP67, constant power, adjustable, circular housing, XBG-100 series
    24,99 €
    244855 XBG-100-A-C XBG-100-A-C
    24,99 €

    More
    Stock: 0
Showing 1 - 2 of 2 products
