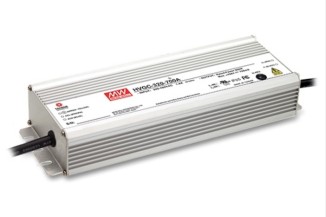

Mean Well LED driver series HVGC-320

LED drivers in a metal housing (IP67) with 320W, a constant current and a 3 in 1 dimming function. These devices have a built-in active PFC function and comply with EN61347-2-13, EN61347-1, EN55015, EN61547, EN...

Mean Well LED driver series HVGC-320

LED drivers in a metal housing (IP67) with 320W, a constant current and a 3 in 1 dimming function. These devices have a built-in active PFC function and comply with EN61347-2-13, EN61347-1, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. They are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. We offer the following types of this Mean Well series: HVGC-320-700B, HVGC-320-1050B, HVGC-320-1400B, HVGC-320-1750B, HVGC-320-2100B, HVGC-320-2800B and HVGC-320-3500B.

  • single output
  • output: 300 to 320W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 50A (480V)
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 262x90x43,8mm
  • weight: 2000g
> More
Data Sheet
