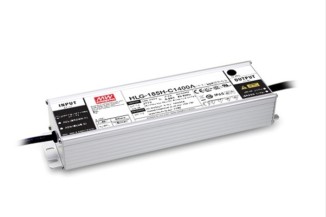

Mean Well LED driver series HLG-185H-C

LED drivers in a metal housing (IP65) with 200W, a constant current, a high output voltage, a 3 in 1 dimming function and a potentiometer for adjusting the current limit. These devices have a built-in active ...

Mean Well LED driver series HLG-185H-C

LED drivers in a metal housing (IP65) with 200W, a constant current, a high output voltage, a 3 in 1 dimming function and a potentiometer for adjusting the current limit. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HLG-185H-C500AB, HLG-185H-C700AB, HLG-185H-C1050AB and HLG-185H-C1400AB.

  • single output
  • output: 199,5 to 200,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +70°C
  • dimensions: 228x68x38,8mm
  • weight: 1150g
> More
Data Sheet
