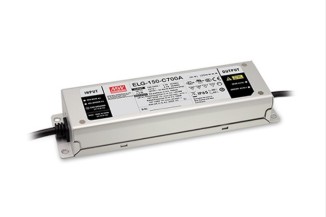

Mean Well LED driver series ELG-150-C

LED drivers in a metal housing (IP65) with 150W, a constant current, a dimming function and a protective earth conductor (PE). These SELV compliant devices have a built-in active PFC function and are protected...

Mean Well LED driver series ELG-150-C

LED drivers in a metal housing (IP65) with 150W, a constant current, a dimming function and a protective earth conductor (PE). These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications, have a potentiometer for adjusting the current limitation and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: ELG-150-C500AB-3Y, ELG-150-C700AB-3Y, ELG-150-C1050AB-3Y, ELG-150-C1400AB-3Y and ELG-150-C1750AB-3Y.

  • single output
  • output: 149,8 to 150,5W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 219x63x35,5mm
  • weight: 950g
> More
Data Sheet
