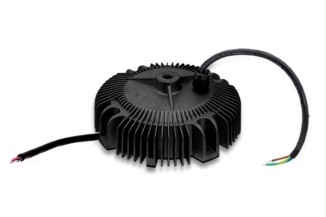

Mean Well LED driver series HBG-240

LED drivers in a circular metal housing (IP67) with 240W, a constant current/voltage and a fixed output current (fixed preset). These SELV compliant devices have a built-in active PFC function and are protected ...

Mean Well LED driver series HBG-240

LED drivers in a circular metal housing (IP67) with 240W, a constant current/voltage and a fixed output current (fixed preset). These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. These devices are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: HBG-240-24, HBG-240-36, HBG-240-48 and HBG-240-60.

  • single output
  • output: 240W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +80°C
  • dimensions: Ø191,5x69mm
  • weight: 2100g
