Mean Well LED driver series HBG-200

LED drivers in a circular housing (IP65) with 200W, a dimming function, a constant current/voltage and a universal input. These devices have a built-in active PFC function and are protected against overload (aut...

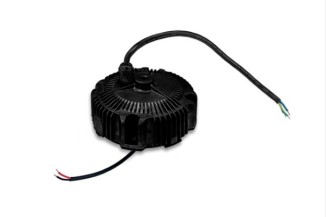

Mean Well LED driver series HBG-200

LED drivers in a circular housing (IP65) with 200W, a dimming function, a constant current/voltage and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications, have an adjustable output current and comply with EN61347-2-13, EN62384, EN55015 and EN61000-3-2 class C. We offer the following types of this Mean Well series: HBG-200-36AB, HBG-200-48AB and HBG-200-60AB.

  • single output
  • output: 196,8 to 198W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 85A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø151,68x66,5mm
  • weight: 1530g
> More
Data Sheet
