Mean Well charger series ENP-240

Desktop switching power supplies in a compact 7" housing with 240W, a universal input, energy efficiency Level VI and a very low no-load power consumption. These devices have a built-in active PFC function and are ...

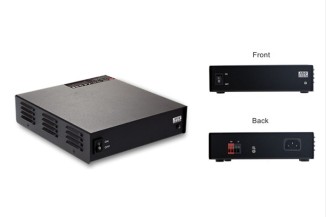

Mean Well charger series ENP-240

Desktop switching power supplies in a compact 7" housing with 240W, a universal input, energy efficiency Level VI and a very low no-load power consumption. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They have a peak load capability of up to 125% and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: ENP-240-12, ENP-240-24 and ENP-240-48.

  • single output
  • output: 240,1 to 243W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 75A
  • no-load power: <0,15W
  • leakage current: <3,5mA
  • overload protection: 110 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1230g
> More
Data Sheet
