Schaffner RFI filter series 5121

Radio frequency interference filters in a metal housing with an IEC C14 plug, a V-Lock cord retaining and protection class I. These devices are suitable for screw or snap-in mounting as well as for medical technolo...

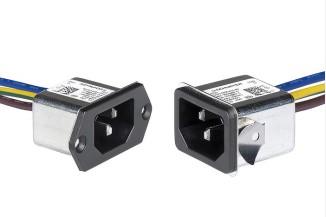

Schaffner RFI filter series 5121

Radio frequency interference filters in a metal housing with an IEC C14 plug, a V-Lock cord retaining and protection class I. These devices are suitable for screw or snap-in mounting as well as for medical technology applications (3-132-195/3-132-199/3-132-197). They are optimally shielded and have a stranded wire connection (150mm). We offer the following types of this Schaffner series: 3-132-192, 3-132-198, 3-132-196, 3-132-195, 3-132-199 and 3-132-197.

  • rated voltage: 250V AC (50/60Hz)
  • dielectric strength line/ground: >2,7kVDC
  • Spannungsfestigkeit line/line: >1,7kVDC
  • operating temperature: -25 to +85°C
  • climatic category (IEC600068-1): HPF (25/085/21)
> More
Data Sheet
