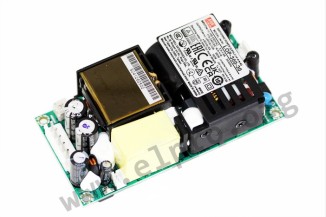

Mean Well power supply series LOP-300

Open frame switching power supplies with 300W (forced air), a low no-load power, a compact size (4"x2"), an adjustable output voltage and protection class I/II. These devices are suitable for medical technology applications (2xMOPP), have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a peak load capability of 150%, an auxiliary output for external fans (12V/0,5A) and comply with EN62368-1, EN60335-1, EN61558-1, EN61558-2-16, EN60601-1 as well as EN55032 class A/B. We offer the following types of this Mean Well series: LOP-300-12, LOP-300-15, LOP-300-18, LOP-300-24, LOP-300-27, LOP-300-30, LOP-300-36, LOP-300-48 and LOP-300-54.

single output
output: 299,7 to 302,4W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
input current: 1,8A
maximal input inrush current: 80A
no-load power: <0,5W
withstand voltage I/P-O/P: 4000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +80°C
dimensions: 101,6x50,8x25,4mm
weight: 210g
