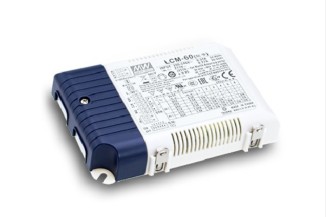

Mean Well LED driver series LCM-60 IoT

LED drivers in a plastic housing with 60W, a constant current (selectable through DIL switch), protection class II and an auxiliary power output (LCM-60_-AUX). These flickerfree devices have a built-in active...

Mean Well LED driver series LCM-60 IoT

LED drivers in a plastic housing with 60W, a constant current (selectable through DIL switch), protection class II and an auxiliary power output (LCM-60_-AUX). These flickerfree devices have a built-in active PFC function, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13 as well as EN55015. They have a Casambi (LCM-60BLE_), Tuya (LCM-60TY1_) or Silvair bluetooth interface (LCM-60SVA_) and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. We offer the following types of this Mean Well series: LCM-60TY1, LCM-60SVA, LCM-60BLE-AUX, LCM-60TY1-AUX and LCM-60SVA-AUX.

  • single output
  • output: 60,3W
  • input voltage: 180 to 295V AC (47 to 63Hz), 254 to 417V DC
  • maximal input inrush current: 20A
  • leakage current: <0,5mA
  • withstand voltage I/P-O/P: 3750V AC
  • dimensions: 105x68x23mm
  • weight: 240g
  • constant current selectable through a DIL switch:
    • 2 to 90V UA (500mA IA)
    • 2 to 90V UA (600mA IA)
    • 2 to 86V UA (700mA IA)
    • 2 to 67V UA (900mA IA)
    • 2 to 57V UA (1050mA IA)
    • 2 to 42V UA (1400mA IA)
> More
Data Sheet
