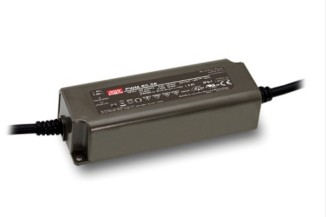

Mean Well LED driver series PWM-60 IoT

LED drivers in a plastic housing (IP67) with 60W, a PWM output voltage (CV), protection class II and a universal input. These devices have a built-in active PFC function, are suitable for LED lighting applica...

Mean Well LED driver series PWM-60 IoT

LED drivers in a plastic housing (IP67) with 60W, a PWM output voltage (CV), protection class II and a universal input. These devices have a built-in active PFC function, are suitable for LED lighting applications and are protected against overload, overvoltage as well as overtemperature. They have a fanless design, a Tuya (PWM-60-_TY1) resp. a Silvair (PWM-60-_SVA) bluetooth interface and comply with UL8750, EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Mean Well series: PWM-60-12TY1, PWM-60-12SVA, PWM-60-24TY1, PWM-60-24SVA, PWM-60-48TY1 and PWM-60-48SVA.

  • single output
  • output: 60W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • input current: 0,32A
  • leakage current: <0,25mA
  • connection type: stranded wires
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +85°C
  • dimensions: 150x53x35mm
  • weight: 490g
> More
Data Sheet
