Mean Well LED driver series XLG-320

LED drivers in a metal housing (IP67) with 315W, a constant voltage/current (XLG-320-V), a constant power (XLG-320-_) and a universal input. These devices have a built-in active PFC function and are suitable for...

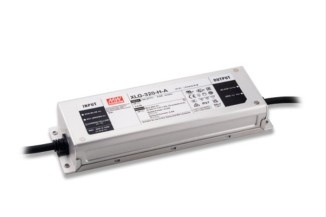

Mean Well LED driver series XLG-320

LED drivers in a metal housing (IP67) with 315W, a constant voltage/current (XLG-320-V), a constant power (XLG-320-_) and a universal input. These devices have a built-in active PFC function and are suitable for LED lighting applications. They are protected against overvoltage, overcurrent, short circuit as well as overtemperature and comply with EN61347-1, EN61347-2-13 as well as EN62384. We offer the following types of this Mean Well series: XLG-320-L, XLG-320-M, XLG-320-H and XLG-320-V.

  • single output
  • output: 310,8 to 315W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 45A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 246x77x39,5mm
  • weight: 1450g
