Mean Well power supply series UHP-2500

Switching power supplies in a U-bracket housing with 2500W, a universal input and a programmable output voltage / current. These devices have a built-in active PFC function and are protected against overload,...

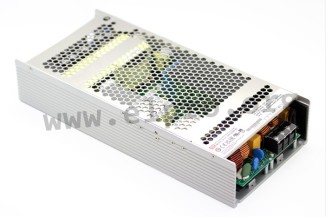

Mean Well power supply series UHP-2500

Switching power supplies in a U-bracket housing with 2500W, a universal input and a programmable output voltage / current. These devices have a built-in active PFC function and are protected against overload, overvoltage, overtemperature as well as short circuit. They have a fanless design, a PMBus (UHP-2500-_PM) resp. a CAN bus interface (UHP-2500-_CAN) and comply with EN62368-1, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: UHP-2500-24PM, UHP-2500-24CAN, UHP-2500-36-PM, UHP-2500-36-CAN, UHP-2500-48PM and UHP-2500-48CAN.

  • single output
  • output: 2498,4 to 2500,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • dimensions: 310x140x60mm
  • weight: 3500g
