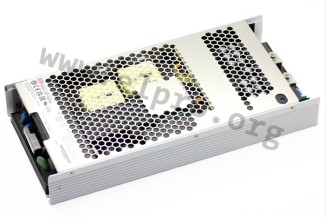

Mean Well power supply series UHP-1500-HV

Switching power supplies in a U-bracket housing with 1500W, a universal input and a programmable output voltage / current. These devices have a built-in active PFC function and are protected against overlo...

Mean Well power supply series UHP-1500-HV

Switching power supplies in a U-bracket housing with 1500W, a universal input and a programmable output voltage / current. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a fanless design and comply with EN62368-1, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: UHP-1500-115PM, UHP-1500-115CAN, UHP-1500-230PM, UHP-1500-230CAN, UHP-1500-380PM and UHP-1500-380CAN.

  • single output
  • output: 1500,75 to 1503W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 6000V DC
  • withstand voltage I/P-FG: 4000V DC
  • withstand voltage O/P-FG: 4000V DC
  • operating temperature: -30 to +70°C
  • dimensions: 290x140x41mm
  • weight: 2510g
