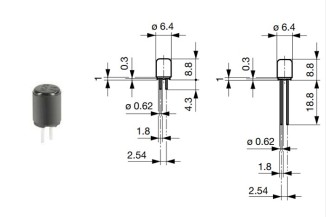

Schurter fuse series MSF 125

Miniature fuses in a radial type plastic housing (UL94V-0) with short terminals (4,3mm) made of tin-plated copper. These fuses have a fast acting characteristic (F) and are suitable for PCB mounting (soldering/plug-in)...

Schurter fuse series MSF 125

Miniature fuses in a radial type plastic housing (UL94V-0) with short terminals (4,3mm) made of tin-plated copper. These fuses have a fast acting characteristic (F) and are suitable for PCB mounting (soldering/plug-in). They have a breaking capacity of 100A and a diameter of Ø6,4mm. We offer various types of this Schurter series.

  • rated voltage: 125V AC/DC
  • rated current: 0,5 bis 2A
  • breaking capacity: 100A
  • operating temperature: -25 to +85°C
> More
Data Sheet
--
