Radiohm choke series 45V

Storage/suppression chokes in a plastic housing (UL94V-0) with 1A (45V_ 1A) resp. 3A (45V_ 3A). These chokes are non-potted and suitable for suppressing interference signals in switching power suppplies. They have four tin...

Radiohm choke series 45V

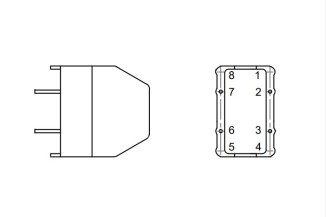

Storage/suppression chokes in a plastic housing (UL94V-0) with 1A (45V_ 1A) resp. 3A (45V_ 3A). These chokes are non-potted and suitable for suppressing interference signals in switching power suppplies. They have four tin-plated soldering pins (vertical mount) and reduce grid-bound interferences. We offer the following types of this Radiohm series: 45V20S 127µH 1A, 45V25 345µH 1A, 45V25 491µH 1A, 45V25 49µH 3A, 45V25 75µH 3A and 45V30 157µH 3A.

  • rated voltage: 250V
  • rated current: 1 resp. 3A
  • inductance tolerance: ±20%
  • climatic category: DIN GKC (-40 to +125°C)
  • humidity: category C
  • ambient temperature: up to +60°C
> More
