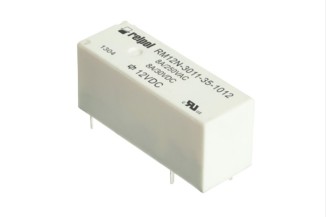

Relpol PCB relay series RM12N

Relays in a 28,7x10,3x12,7mm housing (IP67) with 10A and 1 changeover (RM12N-2011_/RM12N-3011) resp. 1 normally-open contact (RM12N-2021_/RM12N-3021_). These devices are suitable for PCB mounting and comply with EN618...

Relpol PCB relay series RM12N

Relays in a 28,7x10,3x12,7mm housing (IP67) with 10A and 1 changeover (RM12N-2011_/RM12N-3011) resp. 1 normally-open contact (RM12N-2021_/RM12N-3021_). These devices are suitable for PCB mounting and comply with EN61810-1, EN60730-1, EN60335-1, UL508 as well as CSA 22.2 No. 14-95. They have contacts made of AgNi (RM12N-20_) resp. AgSnO2 (RM12N-30_)  and a service life of ar least 107 cycles. We offer various types of this Relpol series.

  • rated current: 10A
  • minimal switching voltage: 6V
  • maximal switching power: 2500VA
  • operating temperature: -40 to +85°C
  • weight: 8g
