C&K rotary switch series RM

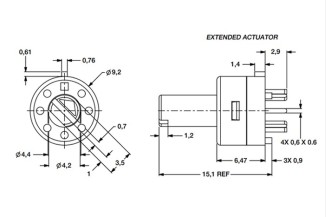

One-level rotary switches with maximum 8 switch positions and a 7,7mm long axis (RM10_77_) resp. a flush hat (RM10_00_). These devices have a single pole design and are suitable for audio/video equipment,consumer electr...

C&K rotary switch series RM

One-level rotary switches with maximum 8 switch positions and a 7,7mm long axis (RM10_77_) resp. a flush hat (RM10_00_). These devices have a single pole design and are suitable for audio/video equipment,consumer electronics as well as telecommunication equipment They have a service life of up to 2.000 cycles and a switching angle of 45°. We offer various types of this C&K series as well as matching knobs (297F_/296F_).

  • switching capacity: 0,5A/24VDC, 0,2A/48V DC
  • insulation resistance: 100MOhm
  • dielectric strength: 500V AC (1min)
  • contacts: brass
  • operating force: 270 ± 100 gf cm
  • surface: gold-plated
  • insulator: polyamide 6.6
  • service life: 2.000 cycles
  • switching angle: 45°
  • operating temperature: -40 to +85°C
> More
Data Sheet
