Degson terminal block series DG308-2.54

2- to 12-pole terminal blocks in green with 130V AC and 8A. These screw terminal blocks have a lift principle and a side wire entry. They have a pitch of 2,54mm and an insulator made of PA66 (UL94V-0). We of...

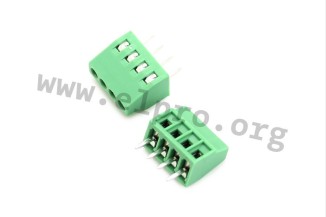

Degson terminal block series DG308-2.54

2- to 12-pole terminal blocks in green with 130V AC and 8A. These screw terminal blocks have a lift principle and a side wire entry. They have a pitch of 2,54mm and an insulator made of PA66 (UL94V-0). We offer the following types of this Degson series: DG308-2.54-02P-14-00A(H), DG308-2.54-03P-14-00A(H), DG308-2.54-04P-14-00A(H), DG308-2.54-05P-14-00A(H), DG308-2.54-06P-14-00A(H), DG308-2.54-08P-14-00A(H), DG308-2.54-10P-14-00A(H) and DG308-2.54-12P-14-00A(H).

  • number of poles: 2 to 12
  • pitch: 2,54mm
  • rated voltage: 130V AC
  • rated current: 8A
  • wire cross section: 0,5 to 1mm²
  • wire stripping length: 4,5mm
  • operating temperature: -10 to +105°C
> More
Data Sheet
