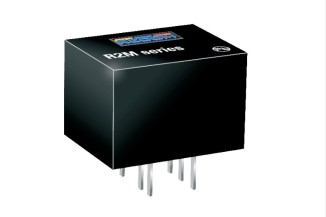

Recom DC/DC converter series R2M

DC/DC converter modules in a DIL8 housing with 2W and a regulated output. These devices have a single (R2M-_S) resp. dual output (R2M-_D) and are protected against short circuit (continuous). They are suitable for ...

Recom DC/DC converter series R2M

DC/DC converter modules in a DIL8 housing with 2W and a regulated output. These devices have a single (R2M-_S) resp. dual output (R2M-_D) and are protected against short circuit (continuous). They are suitable for PCB mounting and have an input voltage ratio of 4:1. We offer the following types of this Recom series: R2M-1205S, R2M-2405S, R2M-2412D, R2M-2412S and R2M-2415D.

  • single (R2M-_S) and dual output (R2M-_D)
  • output: 2W
  • output tolerance: ±1%
  • withstand voltage I/P-O/P: 1600V DC
  • operating temperature: -40 to +85°C
  • dimensions: 14,2x9,1x10,2mm
  • weight: 2,7g
> More
Data Sheet
