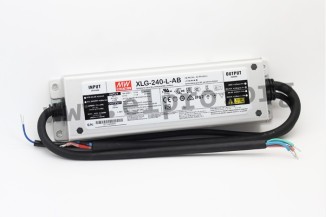

Mean Well LED driver series XLG-240

LED drivers in a metal housing (IP67) with 240W, a constant power/voltage (XLG-240_-AB), a 3 in 1 dimming function and a low no-load power. These devices have a built-in active PFC function, are suitable for flickerfree CV dimming (XLG-240-48-ABV) and are protected against overload (auto recovery), overcurrent, overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000--2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: XLG-240-L-AB, XLG-240-M-AB, XLG-240-H-AB and XLG-240-48-ABV.

single output
output: 239,4 to 240W
input voltage XLG-240_-AB: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
input voltage XLG-240-48-ABV: 110 to 305V AC (47 to 63Hz), 156 to 431V DC
maximal input inrush current: 85A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
dimensions: 219x63x35,5mm
weight: 1000g
