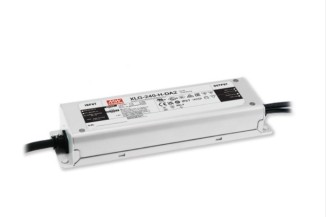

Mean Well LED driver series XLG-240-DA2

LED drivers in a metal housing (IP67) with 240W, a constant power output, a Dali-2 interface and a low no-load power consumption. These devices are suitable for LED lighting applications and are protected against overtemperature, short circuit as well as overvoltage. They are dimmable, have a built-in active PFC function and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-240-L-DA2, XLG-240-M-DA2 and XLG-240-H-DA2.

single output
output: 239,4 to 239,6W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 85A
leakage current: <0,75mA
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1800V AC
operating temperature: -40 to +90°C
weight: 1000g
